2.3.44

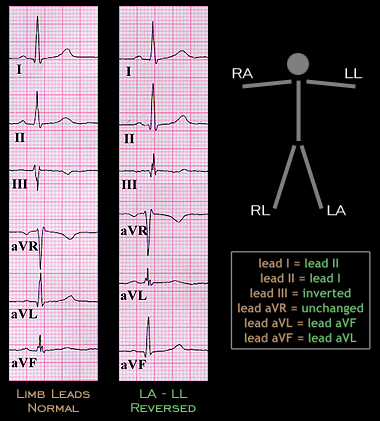

Here, the left leg and left arm leads have been reversed. Lead I is now recorded betweeen the right arm (the negative pole) and the left leg (positive) and is therefore the normal lead II. Lead II, which is now between the right arm (negative) and left arm (positive) is the normal lead I and lead III is inverted. Lead aVR is unchanged while leads aVL and aVF are reversed.
