  3. 2.0.0 The Normal Electrocardiogram
  4. 2.3.0 QRS Complex

2.3.21

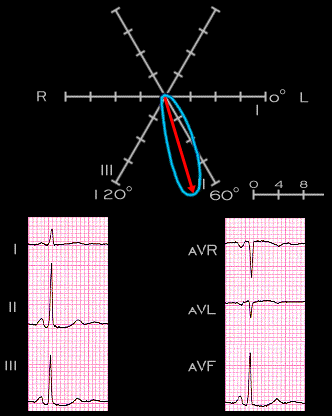

The vector loop associated with this QRS complex is narrower and more vertically oriented than that shown in the preceding example.
