  4. 2.3.0 QRS Complex

2.3.35

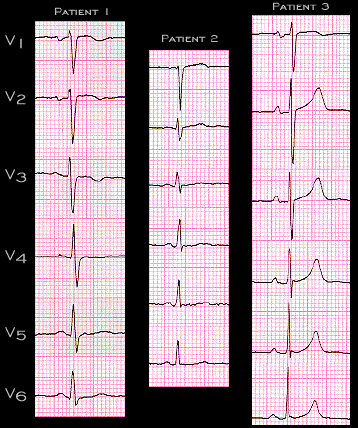

Notice that the amplitude of the S wave or the R wave in these three examples does not exceed either negative or positive  25 mm in any lead. Notice also that although the intial R wave in V1 is of different amplitudes in the three patients, the R/S ratio in V1 is considerably less than 1 in all.
