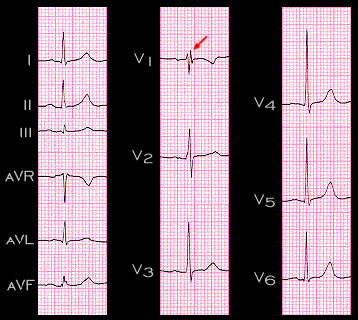

This ECG is from a 24 year old male. The R' in lead V1 (red arrow) represents activation o the right ventricular outflow tract. This normal variant is reported to occur in about 5% of cases, most of whom are young and lean.
