  4. 2.3.0 QRS Complex

2.3.16

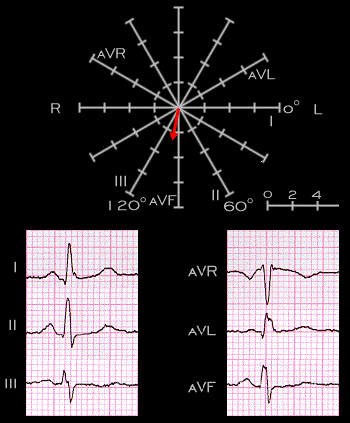

Each of the 3 components can be assigned a spatial vector with a frontal plane axis. The initial component, which is most negative in leads I and aVL, and most positive in leads III and aVL, has a frontal plane axis of approximately 100 degrees.
