  3. 2.0.0 The Normal Electrocardiogram
  4. 2.3.0 QRS Complex

2.3.23

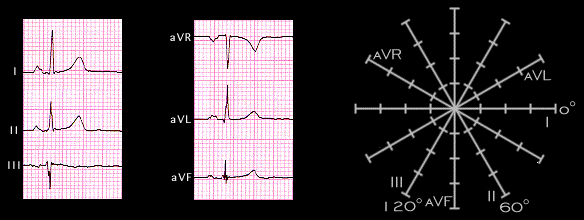

See if you can determine the main electrical axis of this QRS complex, using the hexaxial reference system
