2.3.17

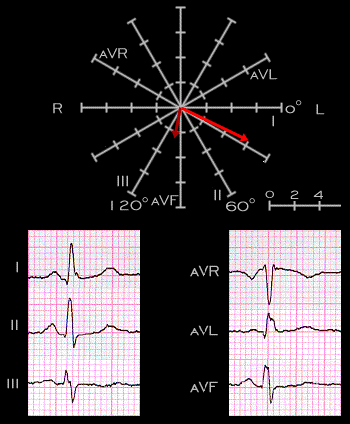

The middle, or main component, with an R wave of roughly equal magnitude in leads I and II and an S wave in lead aVR has a spatial vector with a frontal plane axis of approximately +30 degrees.
