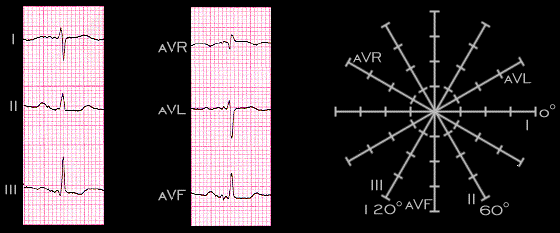

This ECG demonstrates right axis deviation. As in the previous example, try to determine the main frontal plane electrical axis of the QRS complex before going on to the next page,
