2.3.43

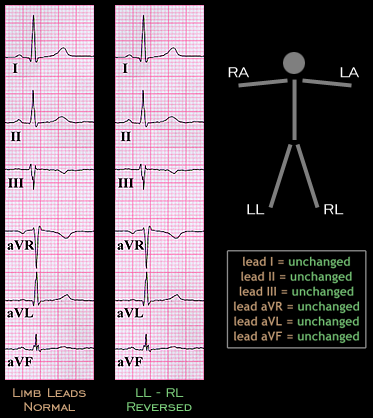

On this page, the right and left leg leads are reversed. This does not alter the ECG waveform because the left leg lead is the only recording lead and the information recorded from both legs is the same. The right leg lead is connected to ground. This is mostly a matter of convenience because it could actually be placed anywhere on the body.
