2.1.3

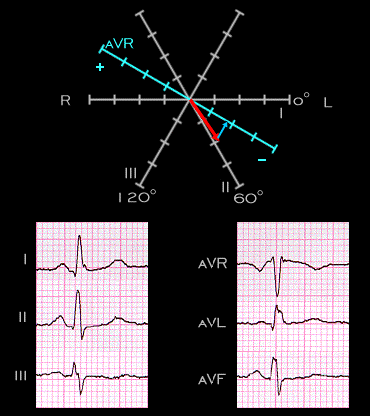

The axis of lead aVR is perpendicular to the axis of lead III and the perpendicular from the intersecting point to the aVR axis will intersect it at -1.8  mm, the amplitude of the P wave in that lead on the ECG.
