6.5.16 (122)

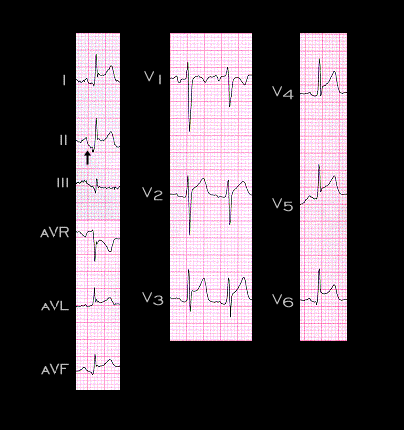

The ECG shown here is from a 42 year old patient with uremic pericarditis. It reveals elevation of the ST segment in all body surface leads except aVR where there is ST segment depression. An additional feature often present in pericarditis is depression of the PR segment which is seen best in lead II (arrow).
