  3. 4.0.0 Ventricular Hypertrophy
  4. 4.1.0 Left Ventricular Hypertrophy (frame 1)

4.1.14 (frame 17)

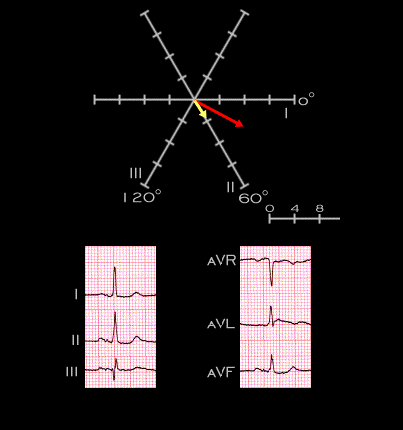

The main QRS axis (red arrow) is +30 degrees, the T wave axis (yellow arrow)  is +60 degrees and the QRS-T angle is 30 degrees. These values are all within their normal ranges.
