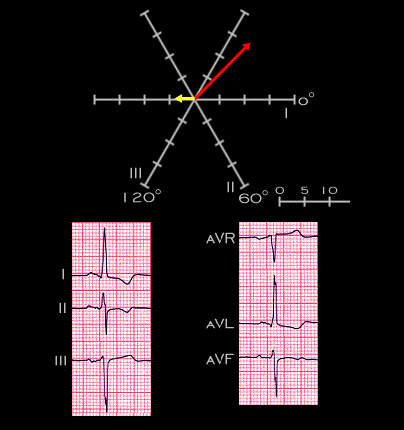

The main QRS axis (red arrow) is about -45 degrees, the T wave axis (yellow arrow) is 180 degrees and the QRS-T angle, which is normally less than 60 degrees, is abnormally wide, measuring 125 degrees. Book traversal links for 4.1.2 (this is frame 8) 4.1.1(OMIT FRAMES 2 AND 3) The image should be from frame 6) Up 4.1.3 (this is frame 4)
