  3. 1.0.0 Generation of the ECG
  4. 1.8.0 Electrodes

1.8.11

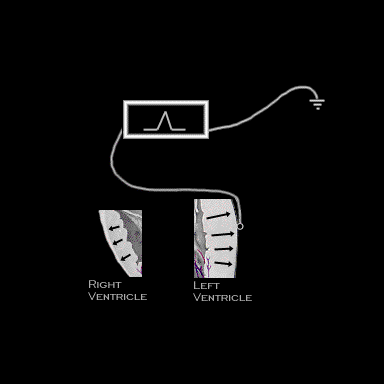

A unipolar electrogram recorded from an electrode placed over the left ventricular epicardial surface would record only an upright or positive deflection. Its amplitude would be larger than the negative deflection shown on the previous page because the electrode would now be in close proximity to the left ventricle.
