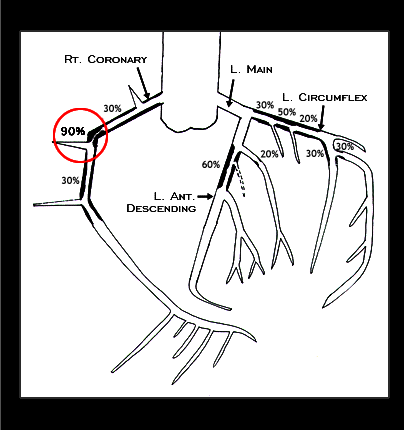

This is a diagram of the coronary angiogram from this patient. It shows a 90% stenosis in the upper third of the right coronary artery , and no more than 60% stenoses in the left anterior descending and left circumflex coronary arteries.
