3.4.3 (55)

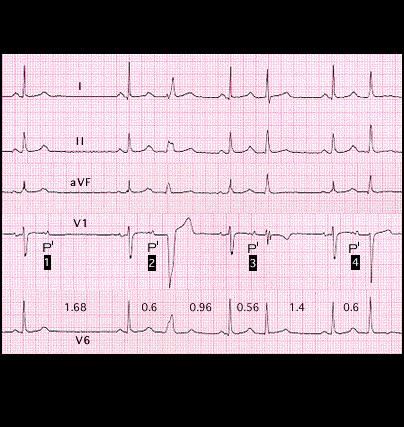

The first of the conducted atrial premature beats (Pā€™ 2) demonstrates left bundle branch block, the next (Pā€™3) conducts with incomplete right bundle branch block and the last (Pā€™4) conducts with an incomplete left bundle branch block.
