  3. 2.0.0 The Normal Electrocardiogram
  4. 2.5.0 T wave

2.5.2

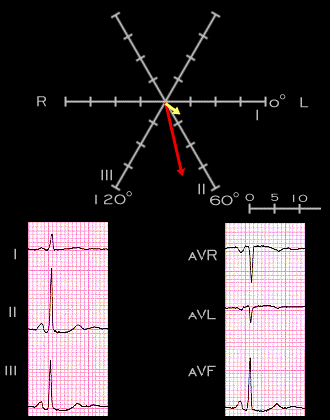

In this example, the main QRS vector (red arrow) is +79 degrees and the T wave vector (yellow arrow) is +39 degrees, giving a QRS-T angle of 40 degrees.
