8.2.14 (55)

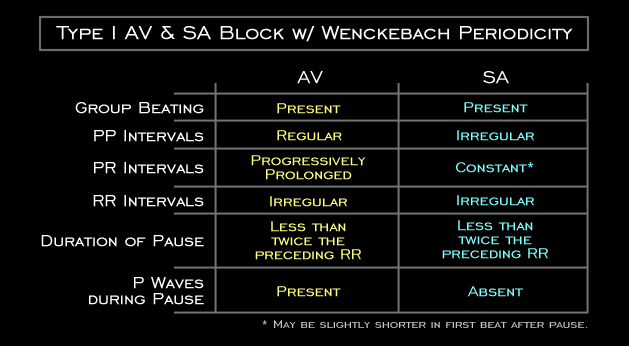

The features of 2nd degree AV and SA block are compared on this and on the following pages. The table on this page compares the features of type I 2nd degree block with Wenckeback periodicity.
