3.5.9 (86)

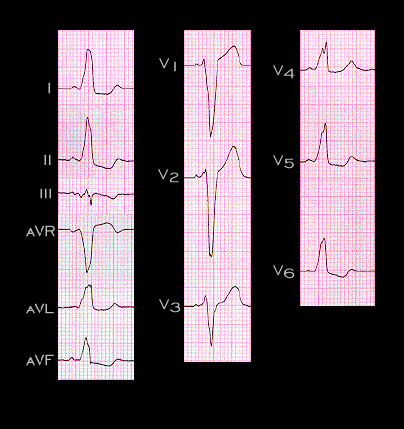

In the tracing shown here, the delta wave is negative in lead aVR and positive in leads 1,II, aVL and Leads V4-V6, In addition the QRS complex resembles left bundle branch block. As predicted, the bypass tract was located in the right lateral position.
