7.4.39 (162)

[THE FIRST ARROW IS NOT QUITE RIGHT. CAN IT BE MOVED A BIT TO THE LEFT?]

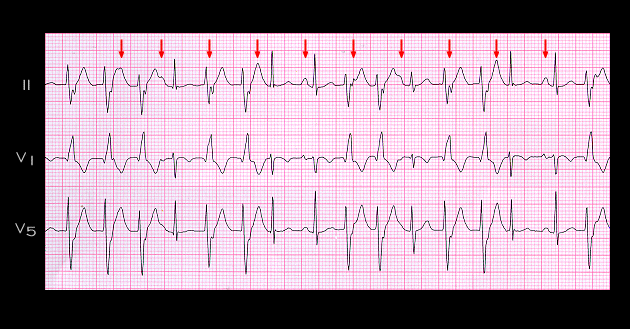

The P waves are marked with the arrows. The PP interval is close to 0.58 seconds, a rate of about 104 per minute.
