7.4.43 (166)

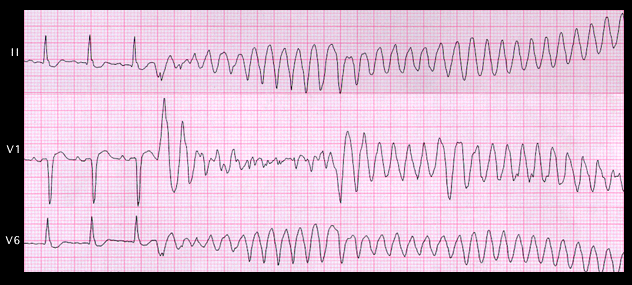

Polymorphic ventricular tachycardia may degenerate into ventricular fibrillation, the most common cause of sudden cardiac death. The ECG shown here is from a 79 year old male patient with an ischemic cardiomyopathy and congestive heart failure. It demonstrates the development of ventricular fibrillation initiated be a ventricular premature beat that arises from the downslope of the preceding T wave. The interval for the apex to the end of the T wave is referred to as the ā€œvulnerable periodā€ because of the propensity of premature beats occurring in this interval to initiate more sustained and more malignant arrhythmias such as ventricular fibrillation.
