5.6.3 (99)

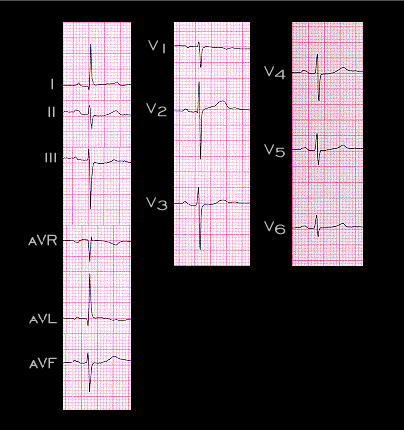

This ECG was recorded when the patient’s temperature had returned to normal. The rhythm is now sinus, the duratin of the QRS complex is 80 ms, the QT interval measures 430 ms and the J/Osborn waves are no longer present.
