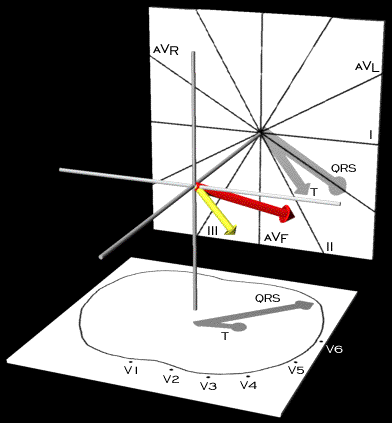

As a result, the 12-lead body surface electrocardiogram is, in essence, a left ventricular electrogram with both the main QRS vector (the red arrow) and T vector (the yellow arrow) being directed to the left, inferiorly and posteriorly.
